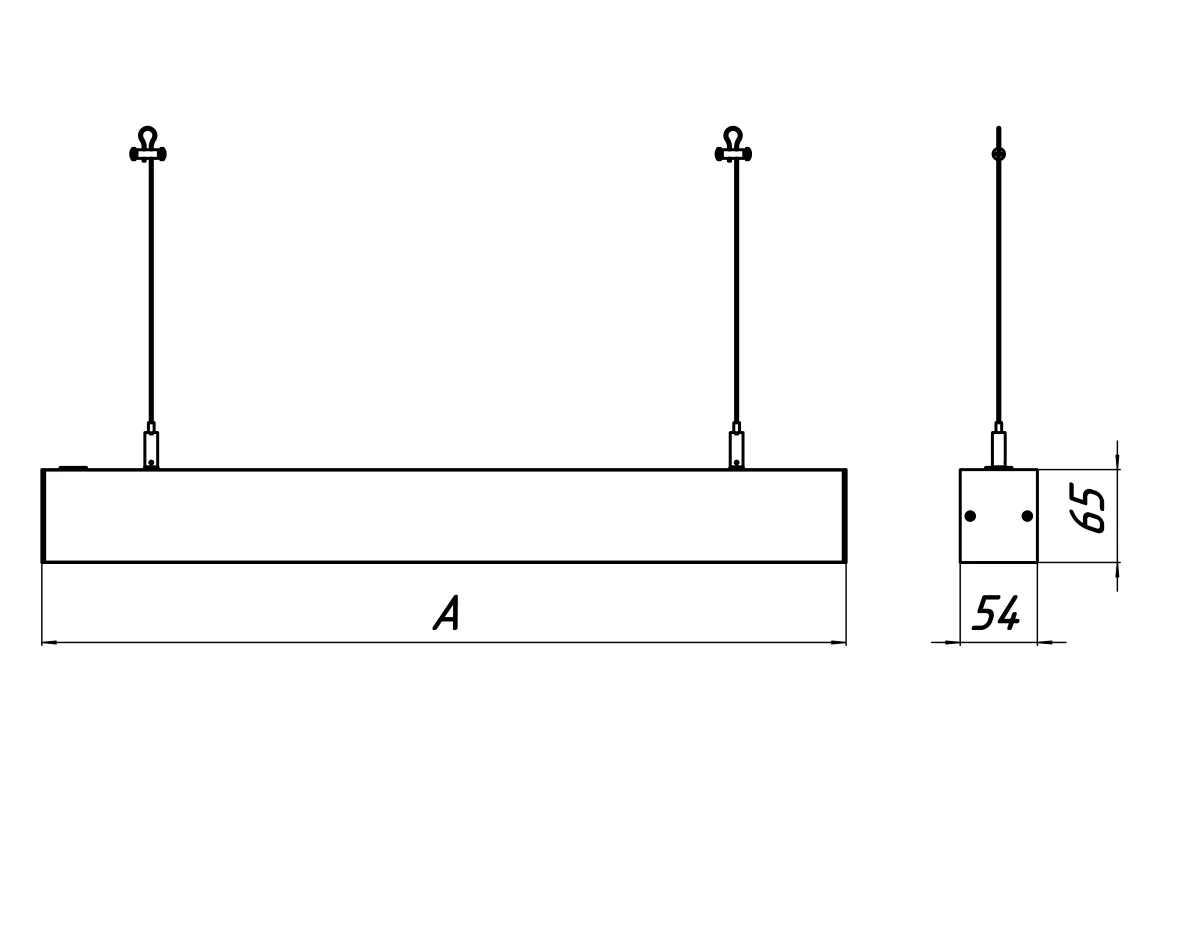

Dimensional drawing, mmdimensions and cut-outs
A = 580 mm
Suspended · LINE-R series
LINE-R
C/2M/2xMARS
LINE-R — a Quantula suspended luminaire. CRI 80 / 90 · 3000K, 3500K, 4000K, 5000K · 15°, 23°, 38°, 40°, 45°, 60° beam. A datasheet for your exact configuration, drawings and the light distribution curve.
up to 38 WPower
up to 170 lm/WEfficacy
up to 90CRI
- Protection
- IP23
- MacAdam
- SDCM 3
- Housing
- Aluminium
- Supply
- 220-240V@50/60Hz
- Light sources
- 2
- Mounting
- Suspended
6 years warranty · ISO 9001:2015 · CE
We send the files by email — leave your contact in the enquiry.
Order configurator
Choose the parameters — the “Datasheet” button then gives you a sheet for exactly this configuration.
CRI + colour temperature
Optic and beam angle
Control
Housing colour
