LINE-R

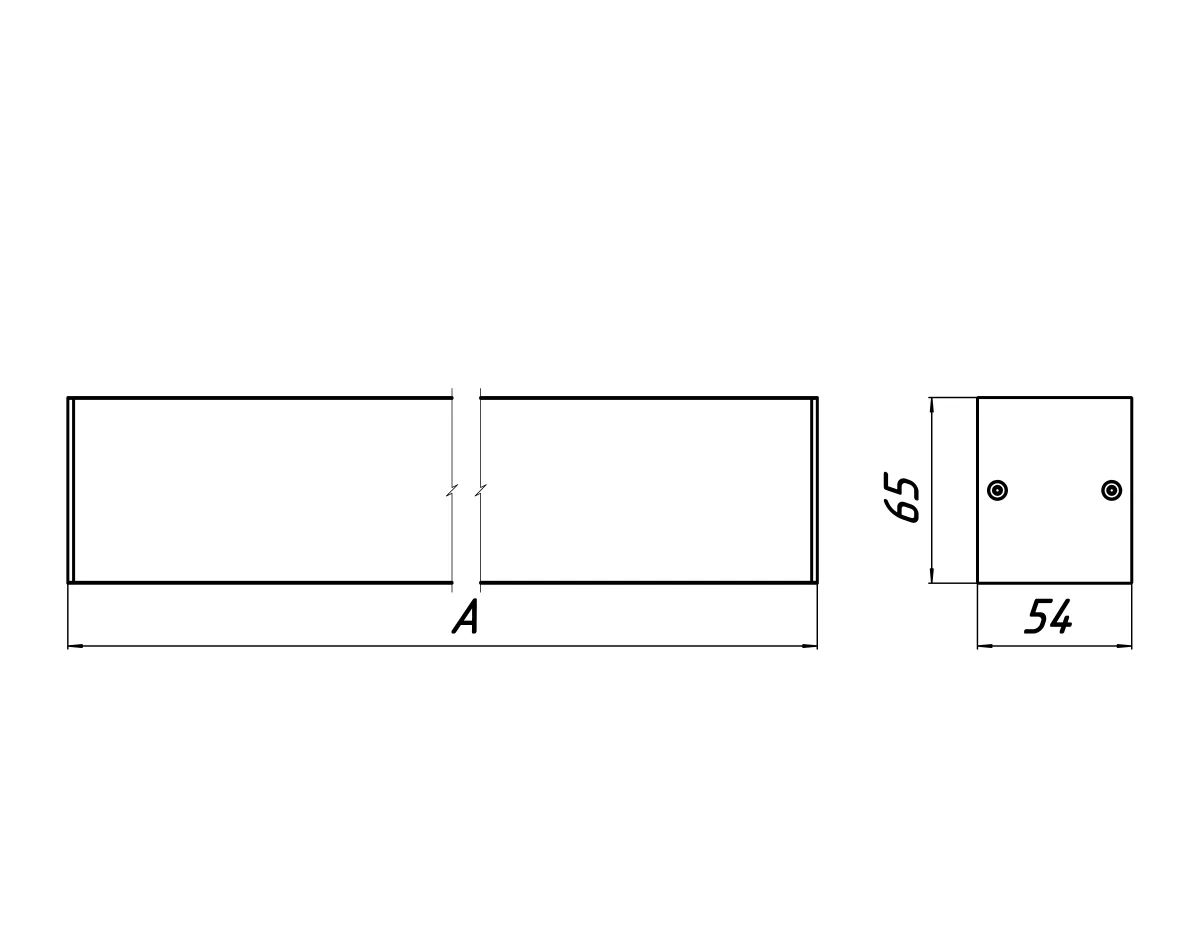

Dimensional drawing, mmdimensions and cut-outs
dimensional drawing of LINE-R C/2M/Trunk, mm

A = 577 mm

Suspended · LINE-R series

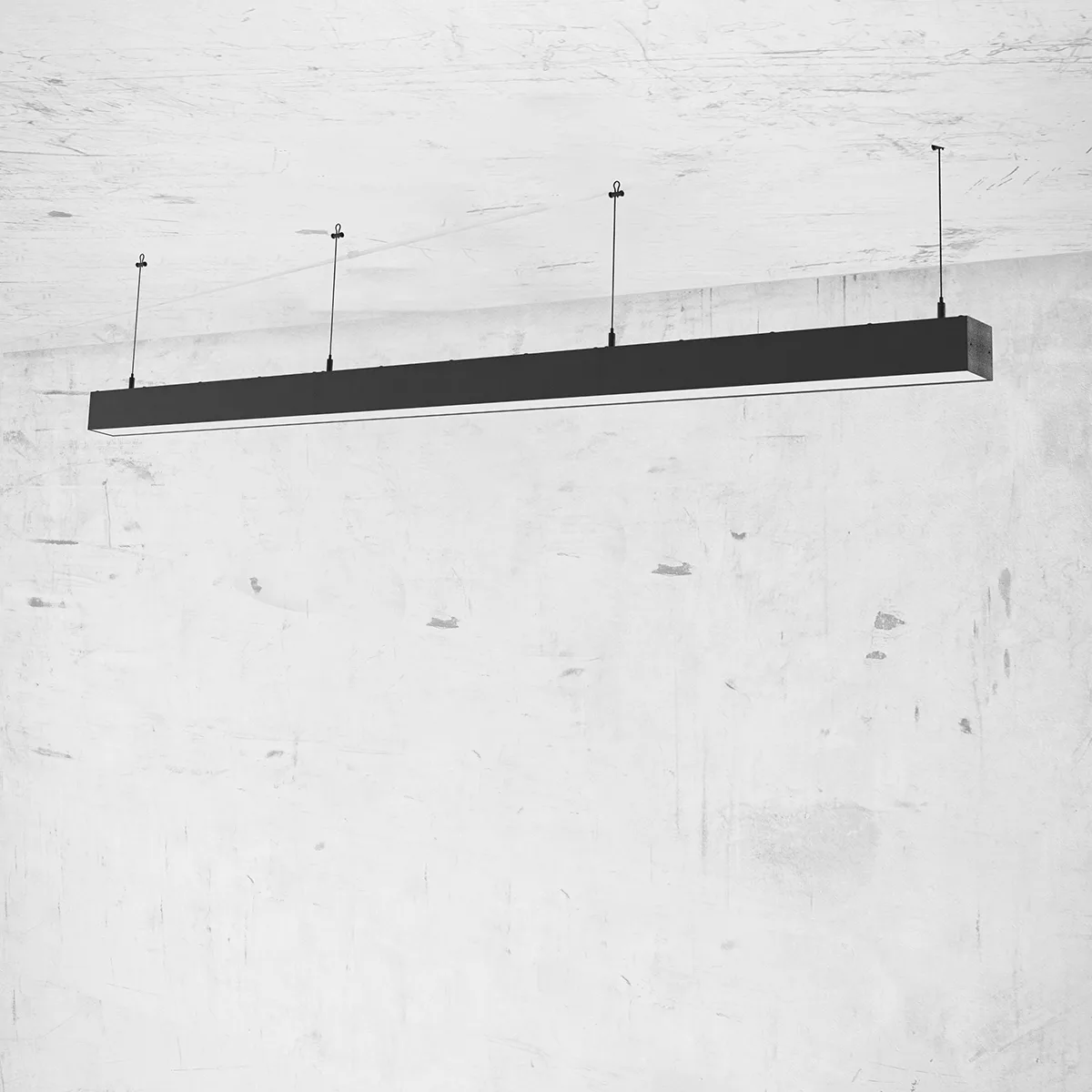

LINE-R

C/2M/Trunk

LINE-R — a Quantula suspended luminaire. 15–28 W · CRI 80 / 90 · 3000K, 3500K, 4000K, 5000K. A datasheet for your exact configuration, drawings and the light distribution curve.

15–28 WPower
up to 170 lm/⁠WEfficacy
up to 90CRI
Protection
IP20 / IP23
MacAdam
SDCM 3
Housing
Aluminium
Supply
220-240V@50/60Hz
Light sources
1
Mounting
Suspended
6 years warranty · ISO 9001:2015 · CE
Series datasheet
IES photometry ↓ DWG drawing ↓ 3D / BIM ↓

We send the files by email — leave your contact in the enquiry.

Configurator Price list Visual
Series as a list

All LINE-R configurations · 128

Parameters are set right here — the datasheet and the enquiry line are built for the configuration you choose.

LINE-R
C/2M/Trunk ● Suspended C/2M/Trunk/SP
Datasheet ↓
LINE-R
C/2M/A/x1/DOTcBM/0 Track C/2M/A/x1/DOTcBM/0/TR
Datasheet ↓
LINE-R
C/1M/A/x1/DOTcBM/0 Track C/1M/A/x1/DOTcBM/0/TR
Datasheet ↓
LINE-R
C/1M/0 Suspended C/1M/0/SP
Datasheet ↓
LINE-R
C/2M/0 Suspended C/2M/0/SP
Datasheet ↓
LINE-R
C/3M/0 Suspended C/3M/0/SP
Datasheet ↓
LINE-R
C/4M/0 Suspended C/4M/0/SP
Datasheet ↓
LINE-R
C/5M/0 Suspended C/5M/0/SP
Datasheet ↓
LINE-R
C/6M/0 Suspended C/6M/0/SP
Datasheet ↓
LINE-R
C/8M/0 Suspended C/8M/0/SP
Datasheet ↓
LINE-R
C/10M/0 Suspended C/10M/0/SP
Datasheet ↓
LINE-R
C/12M/0 Suspended C/12M/0/SP
Datasheet ↓
LINE-R
C/1M/0 Surface-mounted C/1M/0/SF
Datasheet ↓
LINE-R
C/2M/0 Surface-mounted C/2M/0/SF
Datasheet ↓
LINE-R
C/3M/0 Surface-mounted C/3M/0/SF
Datasheet ↓
LINE-R
C/4M/0 Surface-mounted C/4M/0/SF
Datasheet ↓
LINE-R
C/5M/0 Surface-mounted C/5M/0/SF
Datasheet ↓
LINE-R
C/6M/0 Surface-mounted C/6M/0/SF
Datasheet ↓
LINE-R
C/8M/0 Surface-mounted C/8M/0/SF
Datasheet ↓
LINE-R
C/10M/0 Surface-mounted C/10M/0/SF
Datasheet ↓
LINE-R
C/12M/0 Surface-mounted C/12M/0/SF
Datasheet ↓
LINE-R
L/1M/0 Suspended L/1M/0/SP
Datasheet ↓
LINE-R
L/2M/0 Suspended L/2M/0/SP
Datasheet ↓
LINE-R
L/3M/0 Suspended L/3M/0/SP
Datasheet ↓
LINE-R
L/4M/0 Suspended L/4M/0/SP
Datasheet ↓
LINE-R
L/5M/0 Suspended L/5M/0/SP
Datasheet ↓
LINE-R
L/6M/0 Suspended L/6M/0/SP
Datasheet ↓
LINE-R
L/8M/0 Suspended L/8M/0/SP
Datasheet ↓
LINE-R
L/10M/0 Suspended L/10M/0/SP
Datasheet ↓
LINE-R
L/12M/0 Suspended L/12M/0/SP
Datasheet ↓
LINE-R
L/1M/0 Surface-mounted L/1M/0/SF
Datasheet ↓
LINE-R
L/2M/0 Surface-mounted L/2M/0/SF
Datasheet ↓
LINE-R
L/3M/0 Surface-mounted L/3M/0/SF
Datasheet ↓
LINE-R
L/4M/0 Surface-mounted L/4M/0/SF
Datasheet ↓
LINE-R
L/5M/0 Surface-mounted L/5M/0/SF
Datasheet ↓
LINE-R
L/6M/0 Surface-mounted L/6M/0/SF
Datasheet ↓
LINE-R
L/8M/0 Surface-mounted L/8M/0/SF
Datasheet ↓
LINE-R
L/10M/0 Surface-mounted L/10M/0/SF
Datasheet ↓
LINE-R
L/12M/0 Surface-mounted L/12M/0/SF
Datasheet ↓
LINE-R
C/4M/1122/F/x1/DOTcBM/0 Suspended C/4M/1122/F/x1/DOTcBM/0/SP
Datasheet ↓
LINE-R
C/4M/1122/F/x1/DOTcBM/0 Surface-mounted C/4M/1122/F/x1/DOTcBM/0/SF
Datasheet ↓
LINE-R
C/4M+1M/1144/F/x2/PC/UpDown Suspended C/4M+1M/1144/F/x2/PC/UpDown/SP
Datasheet ↓
LINE-R
C/5M+2M/1425/F/x2/PC/UpDown Suspended C/5M+2M/1425/F/x2/PC/UpDown/SP
Datasheet ↓
LINE-R
C/6M+2M/1707/F/x2/PC/UpDown Suspended C/6M+2M/1707/F/x2/PC/UpDown/SP
Datasheet ↓
LINE-R
C/10M+4M/2833/F/x2/PC/UpDown Suspended C/10M+4M/2833/F/x2/PC/UpDown/SP
Datasheet ↓
LINE-R
C/12M+4M/3396/F/x2/PC/UpDown Suspended C/12M+4M/3396/F/x2/PC/UpDown/SP
Datasheet ↓
LINE-R
L/4M/1330/F/x1/PC/UP-light Suspended L/4M/1330/F/x1/PC/UP-light/SP
Datasheet ↓
LINE-R
C/1M/Trunk Suspended C/1M/Trunk/SP
Datasheet ↓
LINE-R
C/3M/Trunk Suspended C/3M/Trunk/SP
Datasheet ↓
LINE-R
C/4M/Trunk Suspended C/4M/Trunk/SP
Datasheet ↓
LINE-R
C/5M/Trunk Suspended C/5M/Trunk/SP
Datasheet ↓
LINE-R
C/6M/Trunk Suspended C/6M/Trunk/SP
Datasheet ↓
LINE-R
C/8M/Trunk Suspended C/8M/Trunk/SP
Datasheet ↓
LINE-R
C/10M/Trunk Suspended C/10M/Trunk/SP
Datasheet ↓
LINE-R
C/12M/Trunk Suspended C/12M/Trunk/SP
Datasheet ↓
LINE-R
C/1M/Trunk Surface-mounted C/1M/Trunk/SF
Datasheet ↓
LINE-R
C/2M/Trunk Surface-mounted C/2M/Trunk/SF
Datasheet ↓
LINE-R
C/3M/Trunk Surface-mounted C/3M/Trunk/SF
Datasheet ↓
LINE-R
C/4M/Trunk Surface-mounted C/4M/Trunk/SF
Datasheet ↓
LINE-R
C/5M/Trunk Surface-mounted C/5M/Trunk/SF
Datasheet ↓
LINE-R
C/6M/Trunk Surface-mounted C/6M/Trunk/SF
Datasheet ↓
LINE-R
C/8M/Trunk Surface-mounted C/8M/Trunk/SF
Datasheet ↓
LINE-R
C/10M/Trunk Surface-mounted C/10M/Trunk/SF
Datasheet ↓
LINE-R
C/12M/Trunk Surface-mounted C/12M/Trunk/SF
Datasheet ↓
LINE-R
L/1M/Trunk Suspended L/1M/Trunk/SP
Datasheet ↓
LINE-R
L/2M/Trunk Suspended L/2M/Trunk/SP
Datasheet ↓
LINE-R
L/3M/Trunk Suspended L/3M/Trunk/SP
Datasheet ↓
LINE-R
L/4M/Trunk Suspended L/4M/Trunk/SP
Datasheet ↓
LINE-R
L/5M/Trunk Suspended L/5M/Trunk/SP
Datasheet ↓
LINE-R
L/6M/Trunk Suspended L/6M/Trunk/SP
Datasheet ↓
LINE-R
L/8M/Trunk Suspended L/8M/Trunk/SP
Datasheet ↓
LINE-R
L/10M/Trunk Suspended L/10M/Trunk/SP
Datasheet ↓
LINE-R
L/12M/Trunk Suspended L/12M/Trunk/SP
Datasheet ↓
LINE-R
L/1M/Trunk Surface-mounted L/1M/Trunk/SF
Datasheet ↓
LINE-R
L/2M/Trunk Surface-mounted L/2M/Trunk/SF
Datasheet ↓
LINE-R
L/3M/Trunk Surface-mounted L/3M/Trunk/SF
Datasheet ↓
LINE-R
L/4M/Trunk Surface-mounted L/4M/Trunk/SF
Datasheet ↓
LINE-R
L/5M/Trunk Surface-mounted L/5M/Trunk/SF
Datasheet ↓
LINE-R
L/6M/Trunk Surface-mounted L/6M/Trunk/SF
Datasheet ↓
LINE-R
L/8M/Trunk Surface-mounted L/8M/Trunk/SF
Datasheet ↓
LINE-R
L/10M/Trunk Surface-mounted L/10M/Trunk/SF
Datasheet ↓
LINE-R
L/12M/Trunk Surface-mounted L/12M/Trunk/SF
Datasheet ↓
LINE-R
C/2M/1xMARS Suspended C/2M/1xMARS/SP
Datasheet ↓
LINE-R
C/2M/1xMARS Surface-mounted C/2M/1xMARS/SF
Datasheet ↓
LINE-R
C/2M/2xMARS Suspended C/2M/2xMARS/SP
Datasheet ↓
LINE-R
C/2M/2xMARS Surface-mounted C/2M/2xMARS/SF
Datasheet ↓
LINE-R
L/2M/1xMARS Suspended L/2M/1xMARS/SP
Datasheet ↓
LINE-R
L/2M/1xMARS Surface-mounted L/2M/1xMARS/SF
Datasheet ↓
LINE-R
L/2M/2xMARS Suspended L/2M/2xMARS/SP
Datasheet ↓
LINE-R
L/2M/2xMARS Surface-mounted L/2M/2xMARS/SF
Datasheet ↓
Photo coming soon
S/1M/D48/V Console S/1M/D48/V/CN
Datasheet ↓
Photo coming soon
S/2M/D48/V Console S/2M/D48/V/CN
Datasheet ↓
Photo coming soon
S/3M/D48/V Console S/3M/D48/V/CN
Datasheet ↓
Photo coming soon
S/4M/D48/V Console S/4M/D48/V/CN
Datasheet ↓
LINE-R
GT/1M/0 Surface-mounted GT/1M/0/SF
Datasheet ↓
LINE-R
GT/2M/0 Surface-mounted GT/2M/0/SF
Datasheet ↓
LINE-R
GT/3M/0 Surface-mounted GT/3M/0/SF
Datasheet ↓
LINE-R
GT/4M/0 Surface-mounted GT/4M/0/SF
Datasheet ↓
LINE-R
GT/2x2M/0 Surface-mounted GT/2x2M/0/SF
Datasheet ↓
LINE-R
GT/2x3M/0 Surface-mounted GT/2x3M/0/SF
Datasheet ↓
LINE-R
GT/2x4M/0 Surface-mounted GT/2x4M/0/SF
Datasheet ↓
LINE-R
VT/2x2M/0 Surface-mounted VT/2x2M/0/SF
Datasheet ↓
LINE-R
VT/2x3M/0 Surface-mounted VT/2x3M/0/SF
Datasheet ↓
LINE-R
VT/3x3M/0 Surface-mounted VT/3x3M/0/SF
Datasheet ↓
LINE-R
VT/4x3M/0 Surface-mounted VT/4x3M/0/SF
Datasheet ↓
LINE-R
VT/5x3M/0 Surface-mounted VT/5x3M/0/SF
Datasheet ↓
LINE-R
Rope/2M/0 Suspended Rope/2M/0/SP
Datasheet ↓
LINE-R
Rope/3M/0 Suspended Rope/3M/0/SP
Datasheet ↓
LINE-R
Rope/4M/0 Suspended Rope/4M/0/SP
Datasheet ↓
LINE-R
Rope/2x2M/0 Surface-mounted Rope/2x2M/0/SF
Datasheet ↓
LINE-R
Rope/2x3M/0 Surface-mounted Rope/2x3M/0/SF
Datasheet ↓
LINE-R
WP/4M/0 Surface-mounted WP/4M/0/SF
Datasheet ↓
LINE-R
WP/5M/0 Surface-mounted WP/5M/0/SF
Datasheet ↓
LINE-R
WP/4M/0 Suspended WP/4M/0/SP
Datasheet ↓
LINE-R
WP/5M/0 Suspended WP/5M/0/SP
Datasheet ↓
LINE-R
GT/1M/Grid Surface-mounted GT/1M/Grid/SF
Datasheet ↓
LINE-R
GT/2M/Grid Surface-mounted GT/2M/Grid/SF
Datasheet ↓
LINE-R
GT/3M/Grid Surface-mounted GT/3M/Grid/SF
Datasheet ↓
LINE-R
GT/4M/Grid Surface-mounted GT/4M/Grid/SF
Datasheet ↓
LINE-R
GT/2x2M/Grid Surface-mounted GT/2x2M/Grid/SF
Datasheet ↓
LINE-R
GT/2x3M/Grid Surface-mounted GT/2x3M/Grid/SF
Datasheet ↓
LINE-R
GT/2x4M/Grid Surface-mounted GT/2x4M/Grid/SF
Datasheet ↓
LINE-R
VT/2x2M/Grid Surface-mounted VT/2x2M/Grid/SF
Datasheet ↓
LINE-R
VT/2x3M/Grid Surface-mounted VT/2x3M/Grid/SF
Datasheet ↓
LINE-R
WP/4M/Grid Surface-mounted WP/4M/Grid/SF
Datasheet ↓
LINE-R
WP/5M/Grid Surface-mounted WP/5M/Grid/SF
Datasheet ↓
LINE-R
WP/4M/Grid Suspended WP/4M/Grid/SP
Datasheet ↓
LINE-R
WP/5M/Grid Suspended WP/5M/Grid/SP
Datasheet ↓
