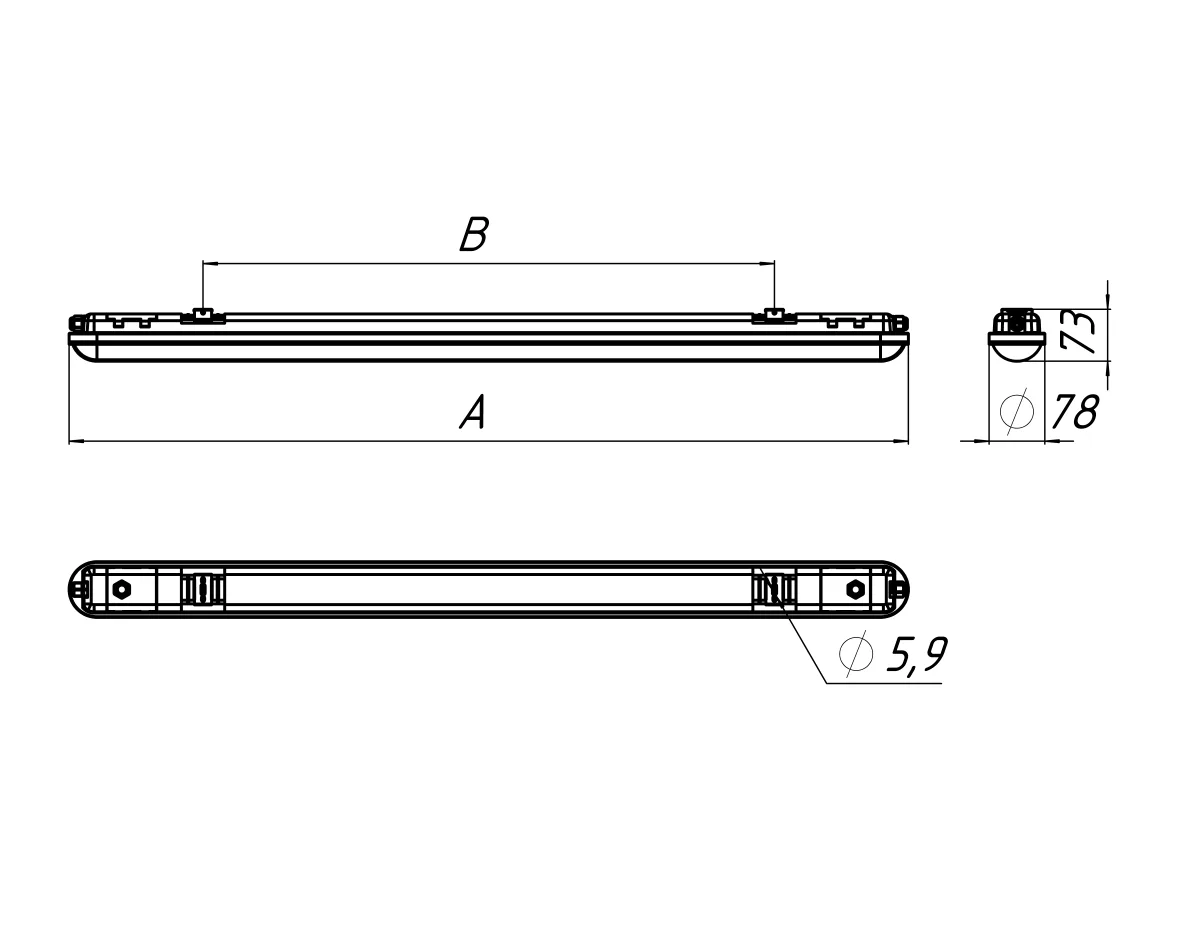

Dimensional drawing, mmdimensions and cut-outs
A = 1175 mm
Suspended · LINE-R series
LINE-R
WP/4M/0

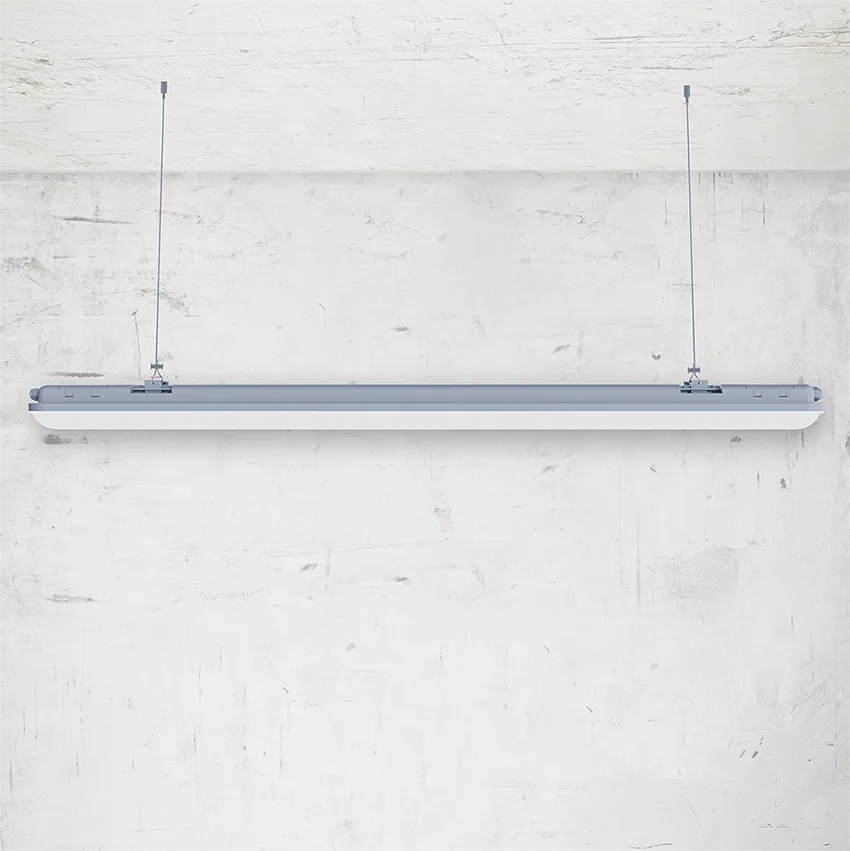

LINE-R — a Quantula suspended luminaire. 40 W · CRI 80 · 4000K. A datasheet for your exact configuration, drawings and the light distribution curve.
40 WPower
up to 170 lm/WEfficacy
up to 90CRI
- Protection
- IP65
- MacAdam
- SDCM 3
- Housing
- PC
- Supply
- 220-240V@50/60Hz
- Light sources
- 1
- Mounting
- Suspended
6 years warranty · ISO 9001:2015 · CE
We send the files by email — leave your contact in the enquiry.
Order configurator
Choose the parameters — the “Datasheet” button then gives you a sheet for exactly this configuration.
Power
CRI + colour temperature
Optic and beam angle
Control
Housing colour
