LINE-R

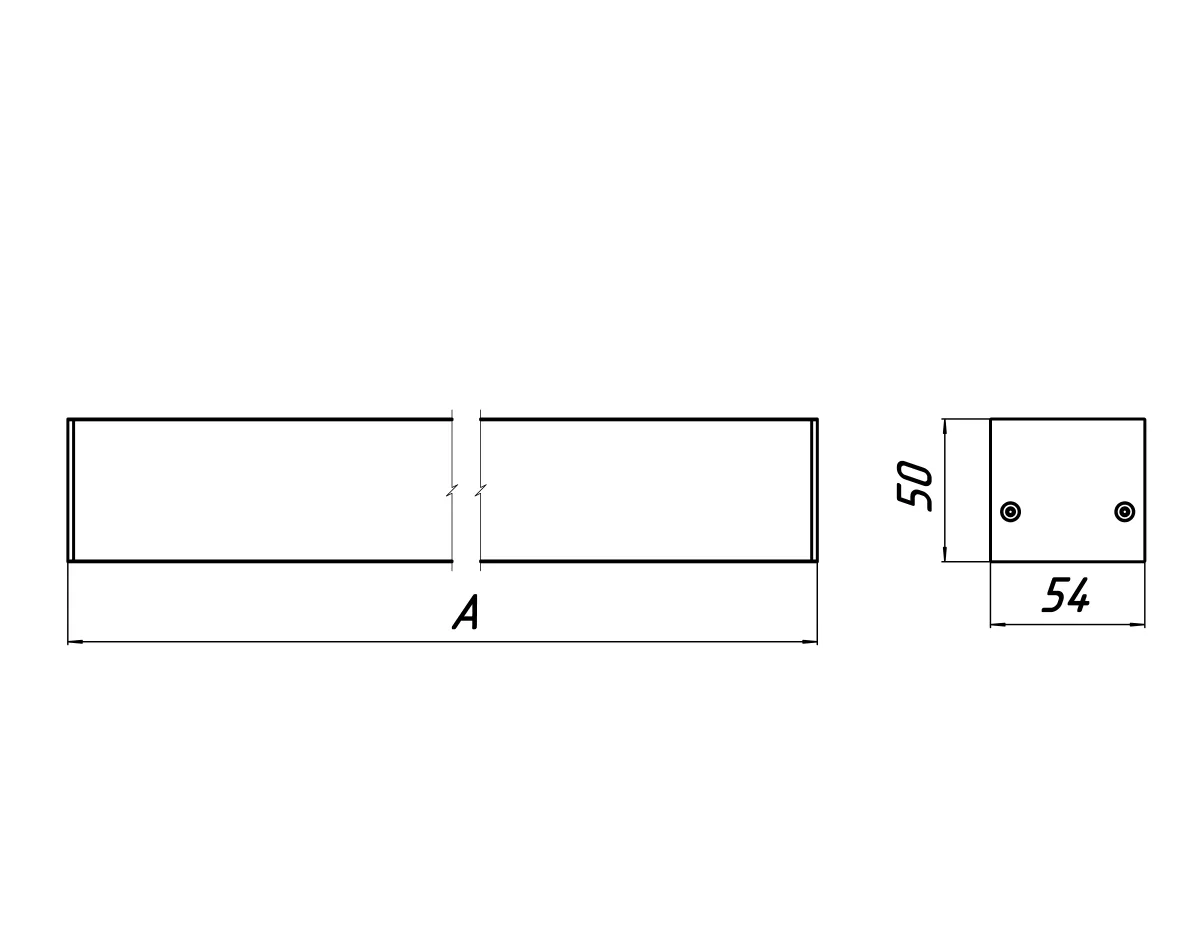

Dimensional drawing, mmdimensions and cut-outs
dimensional drawing of LINE-R L/3M/0, mm

A = 862 mm

Surface-mounted · LINE-R series

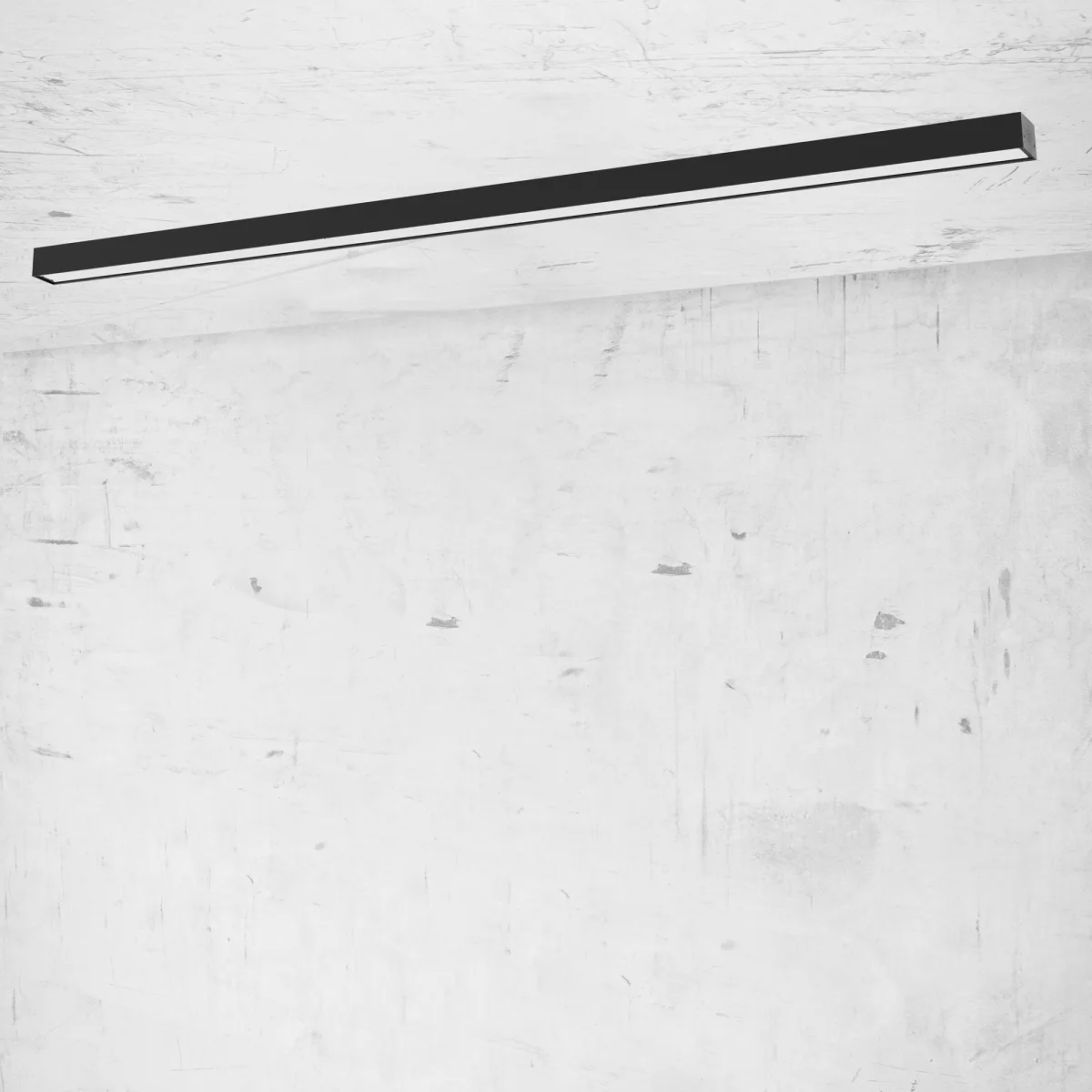

LINE-R

L/3M/0

LINE-R — a Quantula surface-mounted luminaire. 18–42 W · CRI 80 / 90 · 3000K, 3500K, 4000K, 5000K. A datasheet for your exact configuration, drawings and the light distribution curve.

18–42 WPower
up to 170 lm/⁠WEfficacy
up to 90CRI
Protection
IP20 / IP23
MacAdam
SDCM 3
Housing
Aluminium
Supply
220-240V@50/60Hz
Light sources
1
Mounting
Surface-mounted · Surface
6 years warranty · ISO 9001:2015 · CE
Series datasheet
IES photometry ↓ DWG drawing ↓ 3D / BIM ↓

We send the files by email — leave your contact in the enquiry.

Configurator Price list Visual

Order configurator

Choose the parameters — the “Datasheet” button then gives you a sheet for exactly this configuration.

Power
CRI + colour temperature
Optic and beam angle
Control
Housing colour
Series datasheet
