MARS-S
Dimensional drawing, mmdimensions and cut-outs

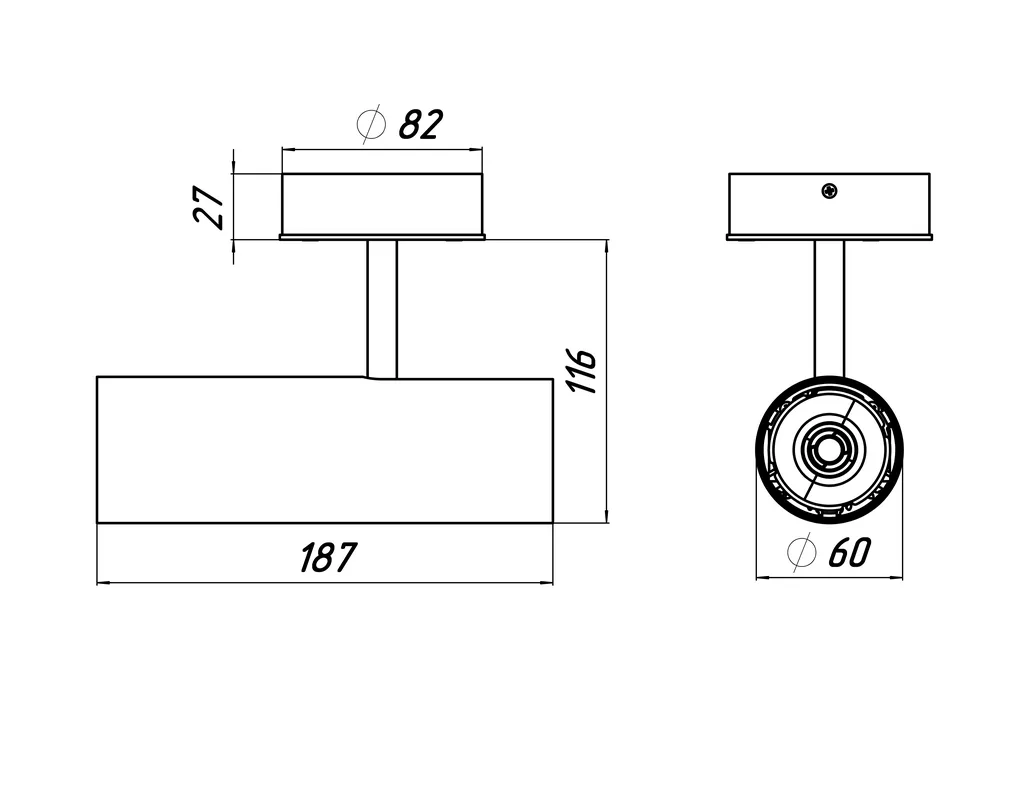

dimensional drawing of MARS-S 60/187/A/x1/R-50/0, mm
Surface-mounted · MARS-S series

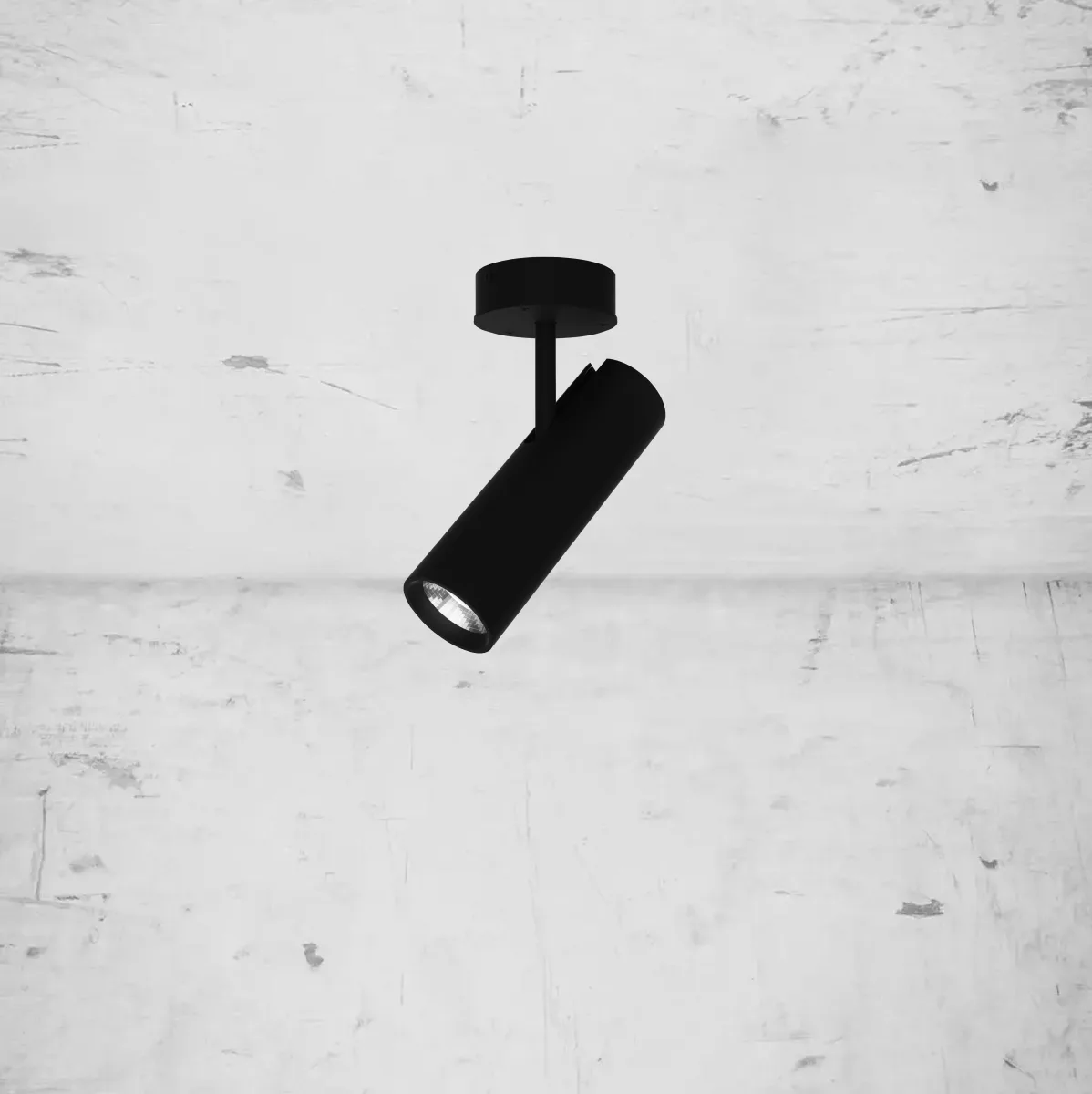

MARS-S

60/187/A/x1/R-50/0
A — adjustable body, 2 degrees of freedom

MARS-S — a Quantula surface-mounted luminaire. 6–19 W · CRI 80 / 90 · 2700K, 3000K, 3500K, 4000K, 5000K. A datasheet for your exact configuration, drawings and the light distribution curve.

6–19 WPower
up to 150 lm/⁠WEfficacy
up to 98CRI
Protection
IP20
MacAdam
SDCM 2
Housing
Aluminium
Supply
220-240V@50/60Hz
Light sources
1
Mounting
Surface-mounted · Surface
6 years warranty · ISO 9001:2015 · CE
Series datasheet
IES photometry ↓ DWG drawing ↓ 3D / BIM ↓

We send the files by email — leave your contact in the enquiry.

Configurator Price list Visual

Order configurator

Choose the parameters — the “Datasheet” button then gives you a sheet for exactly this configuration.

Power
CRI + colour temperature
Optic and beam angle
Control
Housing colour
Series datasheet
