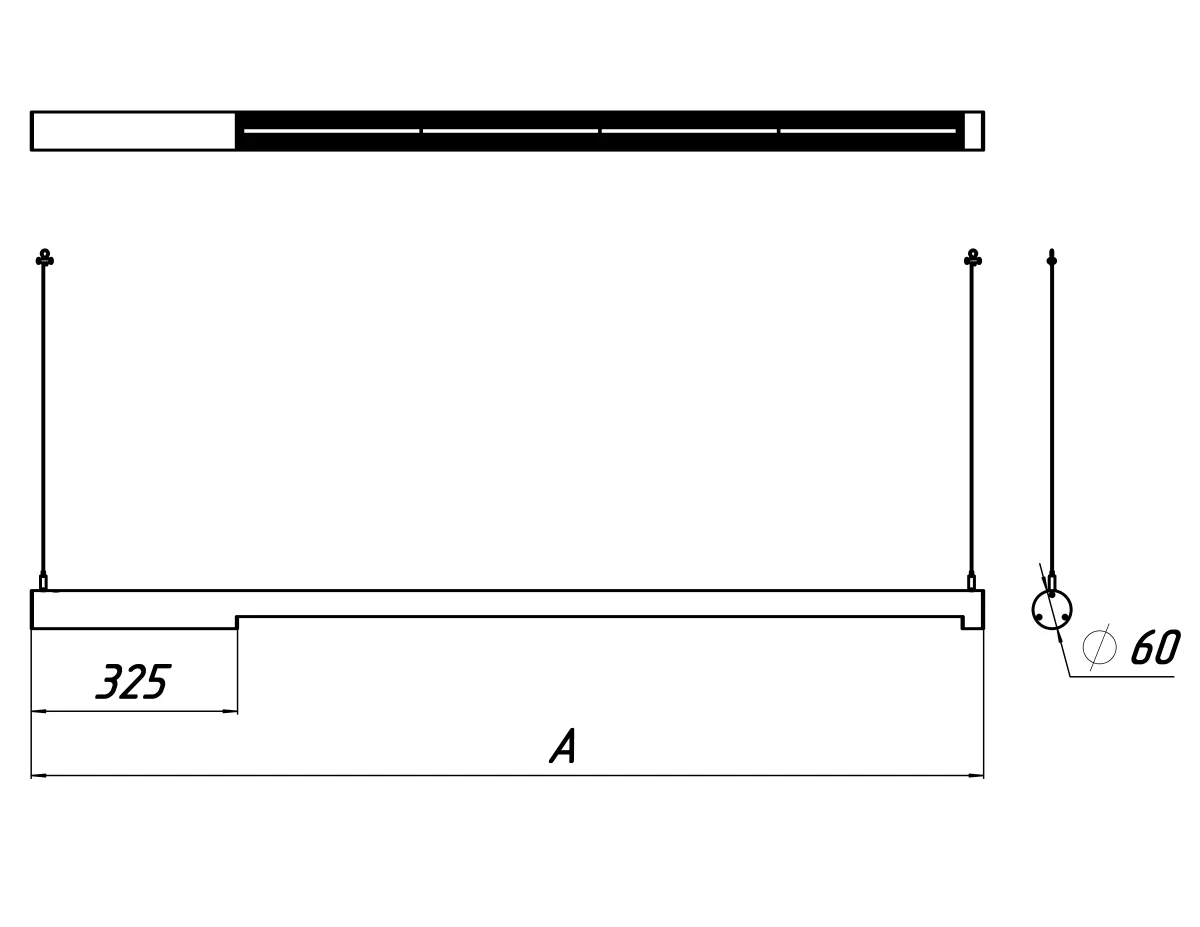

Dimensional drawing, mmdimensions and cut-outs
A = 1500 mm
Suspended · LINE-C series

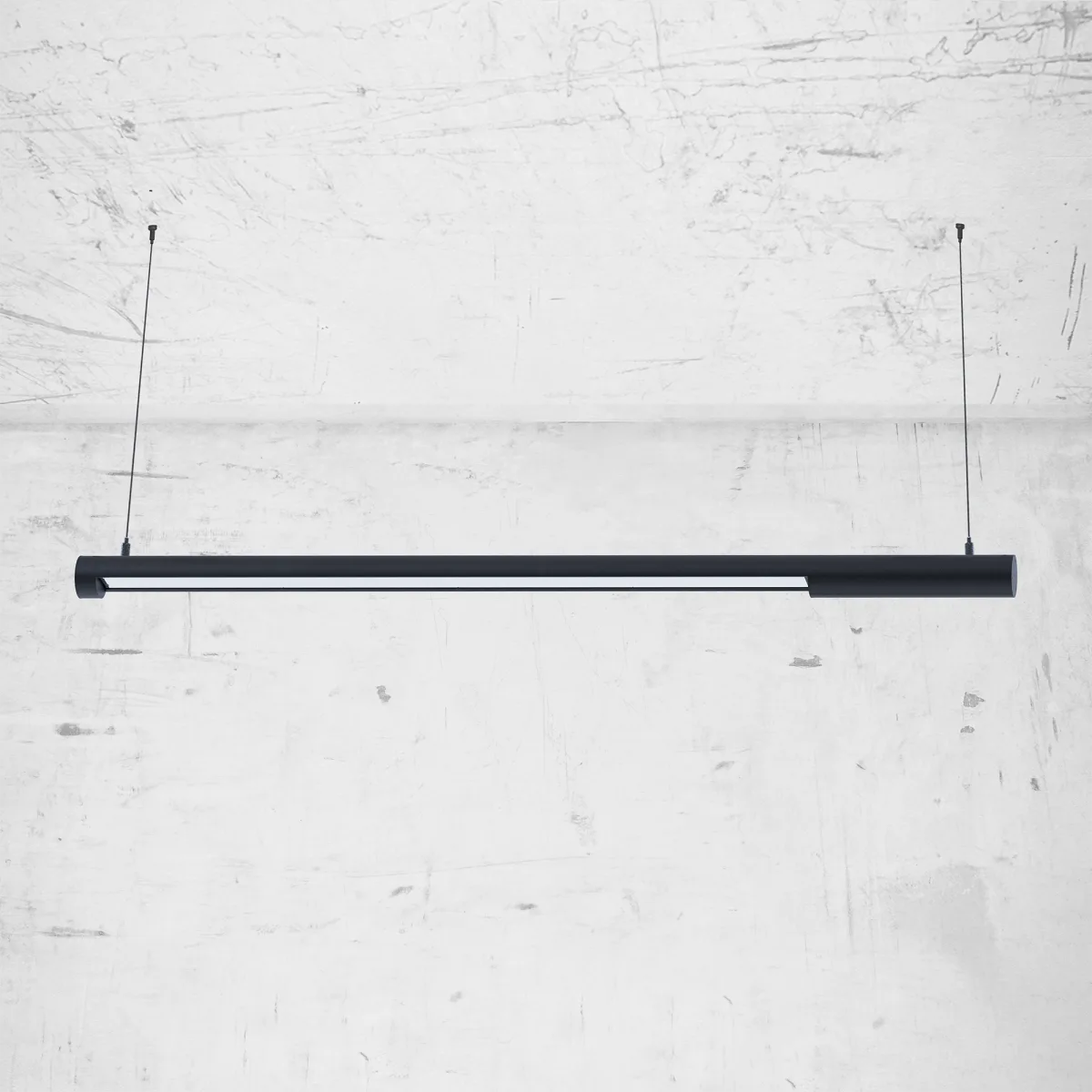

LINE-C
R-D60/4M/1500/F/x1/Lens/0
LINE-C — a Quantula suspended luminaire. 24–56 W · CRI 80 / 90 · 3000K, 3500K, 4000K, 5000K. A datasheet for your exact configuration, drawings and the light distribution curve.
24–56 WPower
up to 160 lm/WEfficacy
up to 90CRI
- Protection
- IP23
- MacAdam
- SDCM 3
- Housing
- Aluminium
- Supply
- 220-240V@50/60Hz
- Light sources
- 1
- Mounting
- Suspended
6 years warranty · ISO 9001:2015 · CE
We send the files by email — leave your contact in the enquiry.
Order configurator
Choose the parameters — the “Datasheet” button then gives you a sheet for exactly this configuration.
