SATURN-aT

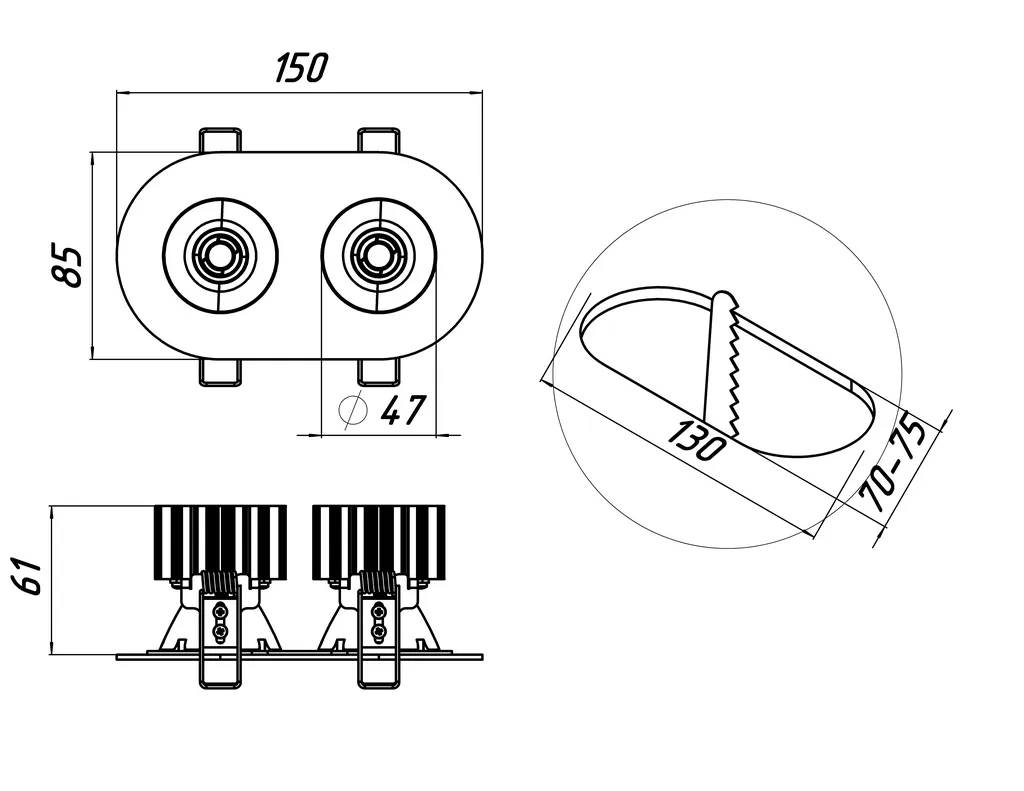

Dimensional drawing, mmdimensions and cut-outs
dimensional drawing of SATURN-aT 60/P/F/x2/R-50/S0, mm
Recessed · SATURN-aT series

SATURN-aT

60/P/F/x2/R-50/S0

SATURN-aT — a Quantula recessed luminaire. 12–28 W · CRI 80 / 90 · 2700K, 3000K, 3500K, 4000K, 5000K. A datasheet for your exact configuration, drawings and the light distribution curve.

12–28 WPower
up to 150 lm/⁠WEfficacy
up to 98CRI
Protection
IP20
MacAdam
SDCM 2
Housing
Steel/Aluminium
Supply
220-240V@50/60Hz
Light sources
2
Mounting
Recessed
6 years warranty · ISO 9001:2015 · CE
Series datasheet
IES photometry ↓ DWG drawing ↓ 3D / BIM ↓

We send the files by email — leave your contact in the enquiry.

Configurator Price list Visual

Order configurator

Choose the parameters — the “Datasheet” button then gives you a sheet for exactly this configuration.

Power
CRI + colour temperature
Optic and beam angle
Control
Housing colour
Series datasheet
Where it is used
Supermarkets Shops and boutiques Shopping centres Offices HoReCa and hotels Hospitals and clinics Schools and universities
