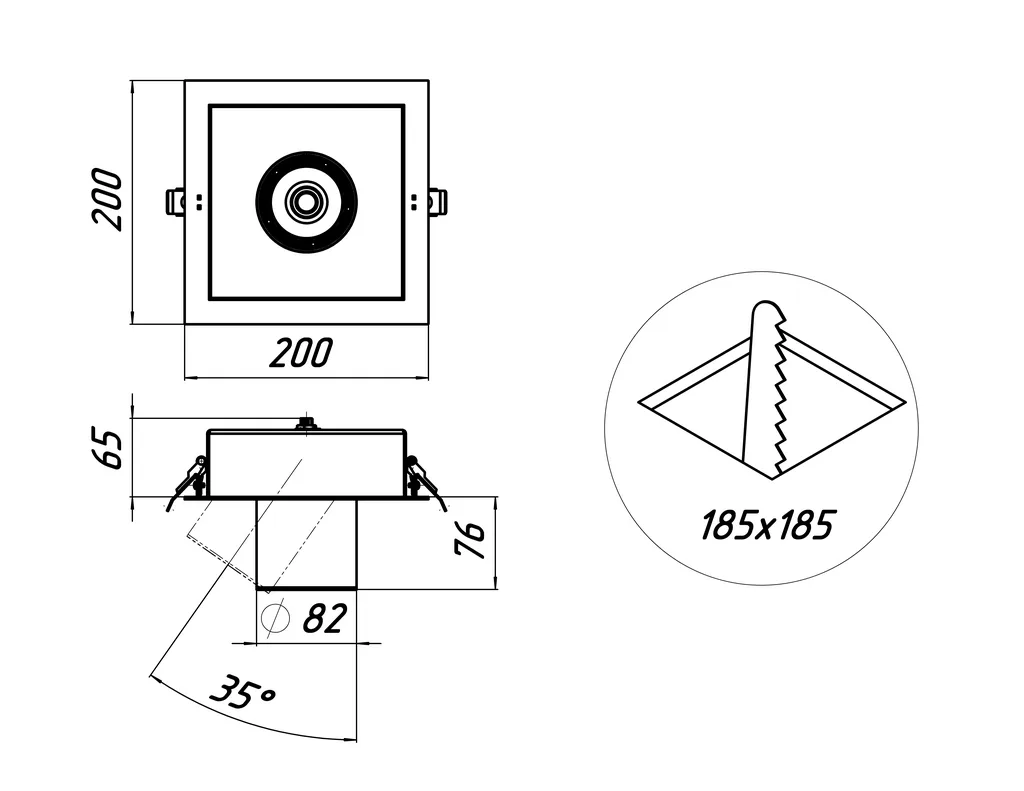

Dimensional drawing, mmdimensions and cut-outs
Recessed · EPOS-S series
EPOS-S
82/80/A/x1/R-75/139x139x40
A — adjustable body, 2 degrees of freedom

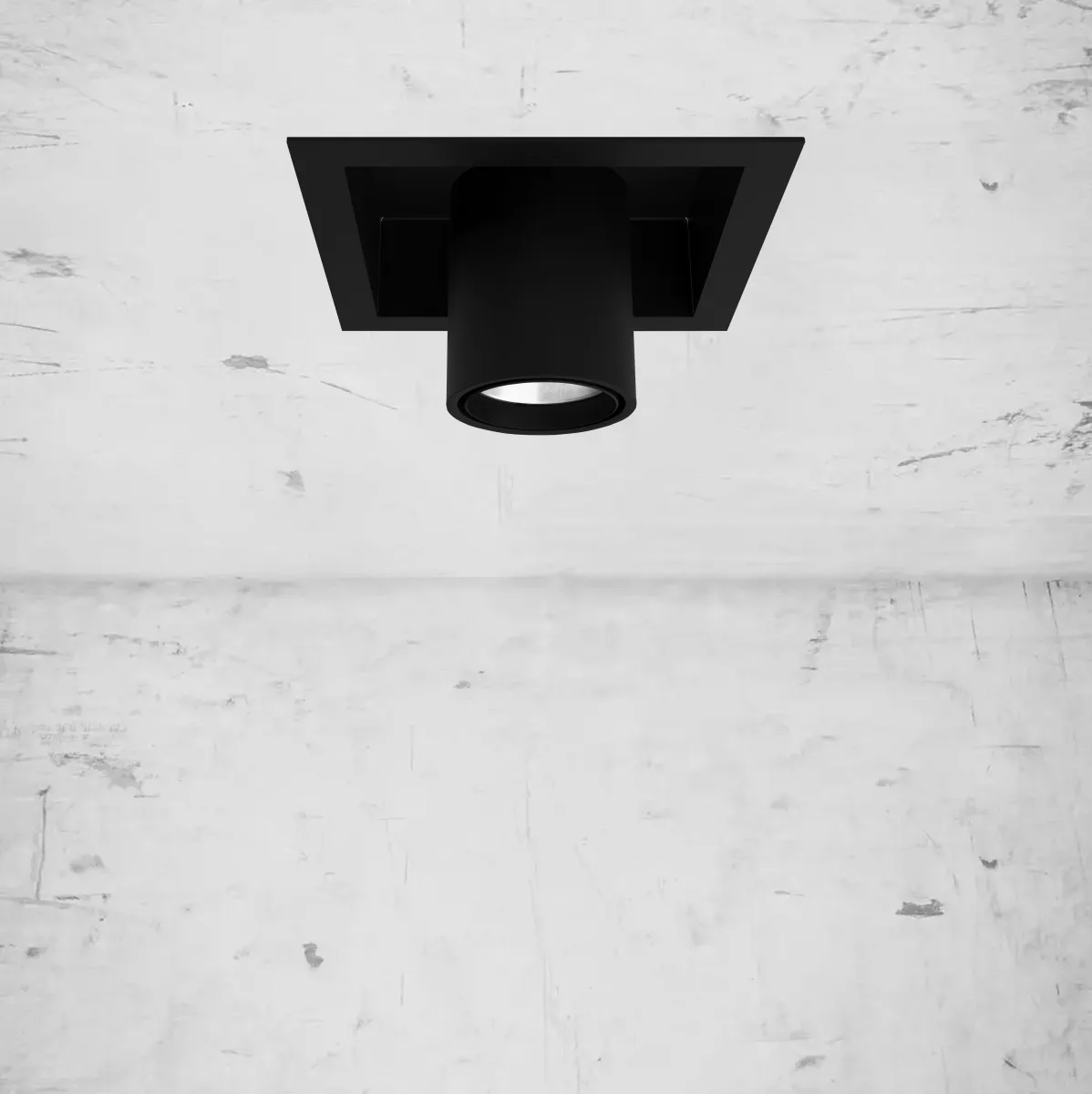

EPOS-S — a Quantula recessed luminaire. 6–19 W · CRI 80 / 90 · 2700K, 3000K, 3500K, 4000K, 5000K. A datasheet for your exact configuration, drawings and the light distribution curve.
6–19 WPower
up to 160 lm/WEfficacy
up to 98CRI
- Protection
- IP20
- MacAdam
- SDCM 2
- Housing
- Steel/Aluminium
- Supply
- 220-240V@50/60Hz
- Light sources
- 1
- Mounting
- Recessed
6 years warranty · ISO 9001:2015 · CE
We send the files by email — leave your contact in the enquiry.
Order configurator
Choose the parameters — the “Datasheet” button then gives you a sheet for exactly this configuration.
Power
CRI + colour temperature
Optic and beam angle
Control
Housing colour
Where it is used
