Home / Catalogue / Surface-mounted
Catalogue · 68 items

Surface-mounted luminaires.

Track, linear, recessed, suspended and industrial luminaires by Quantula: pick a model — the page carries every specification, the drawing, the light distribution curve and a PDF datasheet.

All Track Recessed Suspended Surface-mounted Console Track-D
LINE-R
Filter by specification
Power up to 20 W 20–50 W 50 W+
CRI 80+ 90+
Colour temperature 2700K 3000K 3500K 4000K 5000K
Beam angle up to 15° 16–30° 31–60° over 60°
Optics Reflector Lens Diffuser
Control On-Off DALI Casambi
Ingress protection IP20 IP23 IP65
Special spectrum Meat sMeat whMeat Fish Cheese Bread
Items found: 68
Visual Price list
Model Code Mounting Power CRI CCT Beam angles ControlIP
LINE-R sf/line-r/1m/c/0 LINE-R C/1M/0 Surface-mounted 14 W 80 / 90 3000K, 3500K, 4000K, 5000K 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/2m/c/0 LINE-R C/2M/0 Surface-mounted 15–28 W 80 / 90 3000K, 3500K, 4000K, 5000K 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/3m/c/0 LINE-R C/3M/0 Surface-mounted 18–42 W 80 / 90 3000K, 3500K, 4000K, 5000K 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/4m/c/0 LINE-R C/4M/0 Surface-mounted 24–56 W 80 / 90 3000K, 3500K, 4000K, 5000K 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/5m/c/0 LINE-R C/5M/0 Surface-mounted 30–70 W 80 / 90 3000K, 3500K, 4000K, 5000K 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/6m/c/0 LINE-R C/6M/0 Surface-mounted 36–84 W 80 / 90 3000K, 3500K, 4000K, 5000K 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/8m/c/0 LINE-R C/8M/0 Surface-mounted 48–112 W 80 / 90 3000K, 3500K, 4000K, 5000K 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/10m/c/0 LINE-R C/10M/0 Surface-mounted 60–140 W 80 / 90 3000K, 3500K, 4000K, 5000K 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/12m/c/0 LINE-R C/12M/0 Surface-mounted 72–168 W 80 / 90 3000K, 3500K, 4000K, 5000K 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/1m/l/0 LINE-R L/1M/0 Surface-mounted 14 W 80 / 90 3000K, 3500K, 4000K, 5000K 25°, 35°, 60°, 90°, 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/2m/l/0 LINE-R L/2M/0 Surface-mounted 15–28 W 80 / 90 3000K, 3500K, 4000K, 5000K 25°, 35°, 60°, 90°, 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/3m/l/0 LINE-R L/3M/0 Surface-mounted 18–42 W 80 / 90 3000K, 3500K, 4000K, 5000K 25°, 35°, 60°, 90°, 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/4m/l/0 LINE-R L/4M/0 Surface-mounted 24–56 W 80 / 90 3000K, 3500K, 4000K, 5000K 25°, 35°, 60°, 90°, 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/5m/l/0 LINE-R L/5M/0 Surface-mounted 30–70 W 80 / 90 3000K, 3500K, 4000K, 5000K 25°, 35°, 60°, 90°, 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/6m/l/0 LINE-R L/6M/0 Surface-mounted 36–84 W 80 / 90 3000K, 3500K, 4000K, 5000K 25°, 35°, 60°, 90°, 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/8m/l/0 LINE-R L/8M/0 Surface-mounted 48–112 W 80 / 90 3000K, 3500K, 4000K, 5000K 25°, 35°, 60°, 90°, 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/10m/l/0 LINE-R L/10M/0 Surface-mounted 60–140 W 80 / 90 3000K, 3500K, 4000K, 5000K 25°, 35°, 60°, 90°, 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/12m/l/0 LINE-R L/12M/0 Surface-mounted 72–168 W 80 / 90 3000K, 3500K, 4000K, 5000K 25°, 35°, 60°, 90°, 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/4m/c/1122/f/x1/dotcbm/0 LINE-R C/4M/1122/F/x1/DOTcBM/0 Surface-mounted 18–44 W 80 / 90 3000K, 3500K, 4000K, 5000K 25°, 35°, 50°, 80° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/1m/c/trunk LINE-R C/1M/Trunk Surface-mounted 14 W 80 / 90 3000K, 3500K, 4000K, 5000K 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/2m/c/trunk LINE-R C/2M/Trunk Surface-mounted 15–28 W 80 / 90 3000K, 3500K, 4000K, 5000K 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓

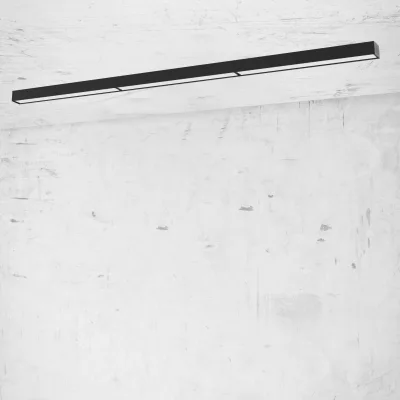

LINE-R sf/line-r/3m/c/trunk LINE-R C/3M/Trunk Surface-mounted 18–42 W 80 / 90 3000K, 3500K, 4000K, 5000K 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/4m/c/trunk LINE-R C/4M/Trunk Surface-mounted 24–56 W 80 / 90 3000K, 3500K, 4000K, 5000K 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/5m/c/trunk LINE-R C/5M/Trunk Surface-mounted 30–70 W 80 / 90 3000K, 3500K, 4000K, 5000K 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/6m/c/trunk LINE-R C/6M/Trunk Surface-mounted 36–84 W 80 / 90 3000K, 3500K, 4000K, 5000K 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/8m/c/trunk LINE-R C/8M/Trunk Surface-mounted 48–112 W 80 / 90 3000K, 3500K, 4000K, 5000K 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/10m/c/trunk LINE-R C/10M/Trunk Surface-mounted 60–140 W 80 / 90 3000K, 3500K, 4000K, 5000K 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/12m/c/trunk LINE-R C/12M/Trunk Surface-mounted 72–168 W 80 / 90 3000K, 3500K, 4000K, 5000K 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/1m/l/trunk LINE-R L/1M/Trunk Surface-mounted 14 W 80 / 90 3000K, 3500K, 4000K, 5000K 25°, 35°, 60°, 90°, 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/2m/l/trunk LINE-R L/2M/Trunk Surface-mounted 15–28 W 80 / 90 3000K, 3500K, 4000K, 5000K 25°, 35°, 60°, 90°, 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/3m/l/trunk LINE-R L/3M/Trunk Surface-mounted 18–42 W 80 / 90 3000K, 3500K, 4000K, 5000K 25°, 35°, 60°, 90°, 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/4m/l/trunk LINE-R L/4M/Trunk Surface-mounted 24–56 W 80 / 90 3000K, 3500K, 4000K, 5000K 25°, 35°, 60°, 90°, 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/5m/l/trunk LINE-R L/5M/Trunk Surface-mounted 30–70 W 80 / 90 3000K, 3500K, 4000K, 5000K 25°, 35°, 60°, 90°, 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/6m/l/trunk LINE-R L/6M/Trunk Surface-mounted 36–84 W 80 / 90 3000K, 3500K, 4000K, 5000K 25°, 35°, 60°, 90°, 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/8m/l/trunk LINE-R L/8M/Trunk Surface-mounted 48–112 W 80 / 90 3000K, 3500K, 4000K, 5000K 25°, 35°, 60°, 90°, 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
LINE-R sf/line-r/10m/l/trunk LINE-R L/10M/Trunk Surface-mounted 60–140 W 80 / 90 3000K, 3500K, 4000K, 5000K 25°, 35°, 60°, 90°, 110° On-Off · DALI IP20 / IP23 Specifications · Datasheet ↓
